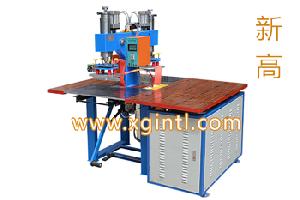

High Frequency Double pneumatic machines

XINGAO Mechanical Electrical Equipment Co., Ltd.
TEL：86 0769 87925226
　　　86 0769 82169222
FAX：86 0769 87909315
PHONE：13711991729
ADD：China Town, Dongguan City, Guangdong Province, Shitanpu Chong Hing Industrial Zone B, No. 1

index > Products > High Frequency > Standard4KW-150KW

Clicks:Updated:2013-06-28【Print】【Close】

Details
Wholesale
Shipping
Transactions
Contact

Machine features:
◆ High Q electronic oscillator tube, the output is stable and reliable,
◆ pneumatic devices, saving time and effort, consistency, easy to operate,
◆ program default, mechanical interlock, the nose alternately conversion work,
◆ using high sensitivity spark arrester, sparking extent of the damage to a minimum when the mold, reduce product scrap rate.
◆ High-precision temperature control, ensure the welding consistency,

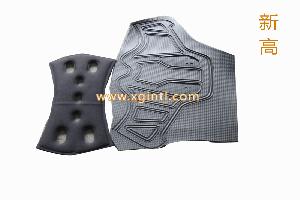

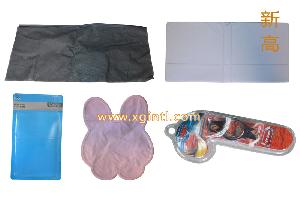

quality ◆ assembly of imported components.   Uses: manufacturing toys, embossed, pressed leather, raincoat, shoe Du bottom, CD bags, wallets, belts, paper bags, handbags, stationery, trademark, pencil boxes and other plastic packaging products, packaging industry voltages. Technical Specifications:

Model	XG-5000T	XG-8000TA	XG-10000TA
High Frequency Power	5000W	8000W	10000W
Supply Voltage	220V/380V 50/60HZ
Frequency	27.12MHZ
Input Power	8KVA	15KVA	18KVA
Rectifiers	Silicon diode
Oscillating tube	7T85RB	7T69RB	E3069
Maximum pressure	350KG	450KG	500KG
Maximum electrode spacing	160-200mm
Size of active horn	60mm
On the electrode size	120x290mm	120x290mm	200x300mm
Table size	350x700mm	350x700mm	400x800mm
Temperature range	30-300 ℃
Time adjustment	1-10s
Compression method	Foot
Capacity	3000x4000tims/8h
Net weight	330KG	380KG	430KG
Dimensions	1720x1100x1500mm	1800x1200x1600mm	2000x1500x1700mm
